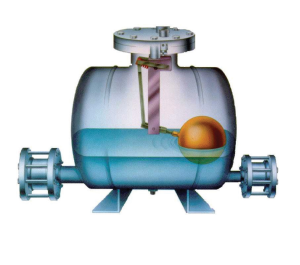

Αντλία Συμπυκνωμάτων FPS14 GESTRA / Condensate Pump FPS14 GESTRA

Description
The FPS 14 steam-powered condensate-return unit uses booster steam to collect and transport condensate at intervals that vary depending on the level. The transport intervals are controlled by a special float valve. This system does not require electric condensate pumps. The equipment may only be used within the admissible pressure and temperature ratings, with due consideration of chemical and corrosive influences. Improper use also includes using equipment made of materials that are unsuitable for the fluid used.

Technical data
The FPS 14 steam-powered condensate-return unit is built for condensate flowrates of up to 5.7 t/h as standard. The delivery rate drops as the back pressure increases. For higher condensate flowrates, we recommend GESTRA SD and SDR condensate collection and return systems.

Maximum pressure
FPS 14-13: 12 bar
FPS 14-10, FPS 14A-10: 10 bar

Service temperature : 200 °C

Delivery head: Booster steam pressure [bar] x 0.7
